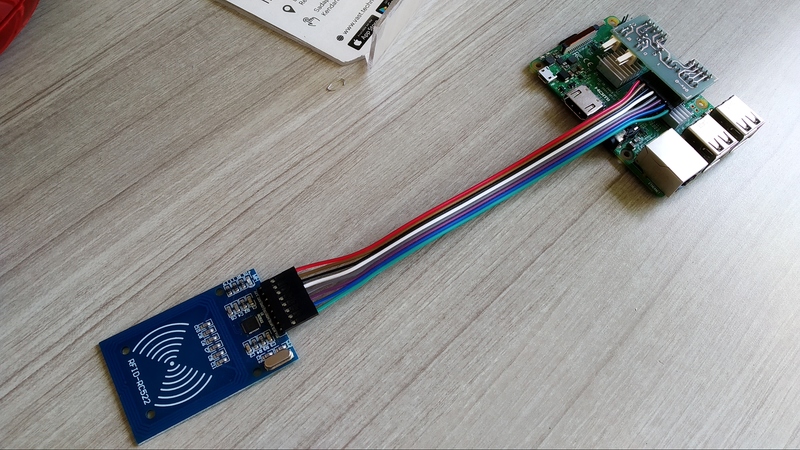

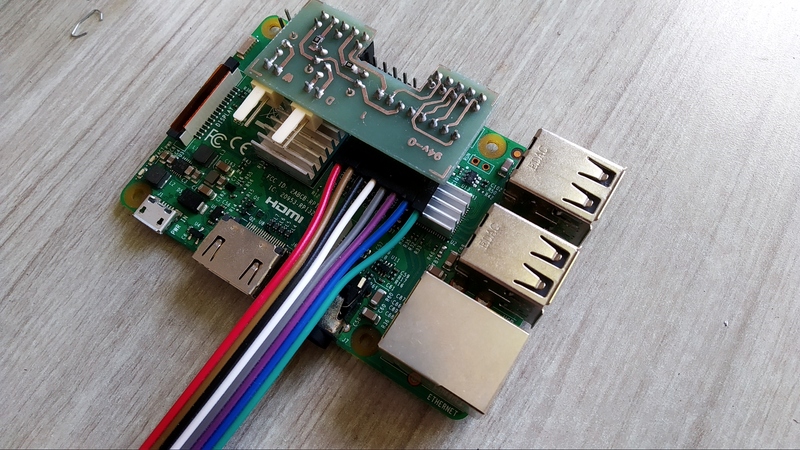

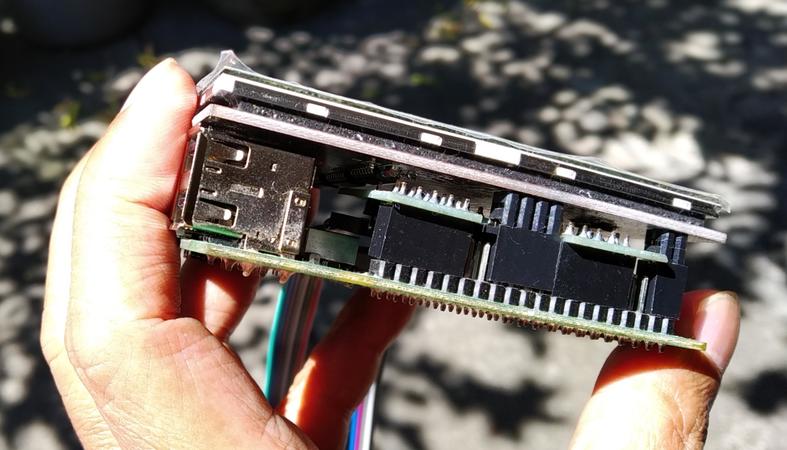

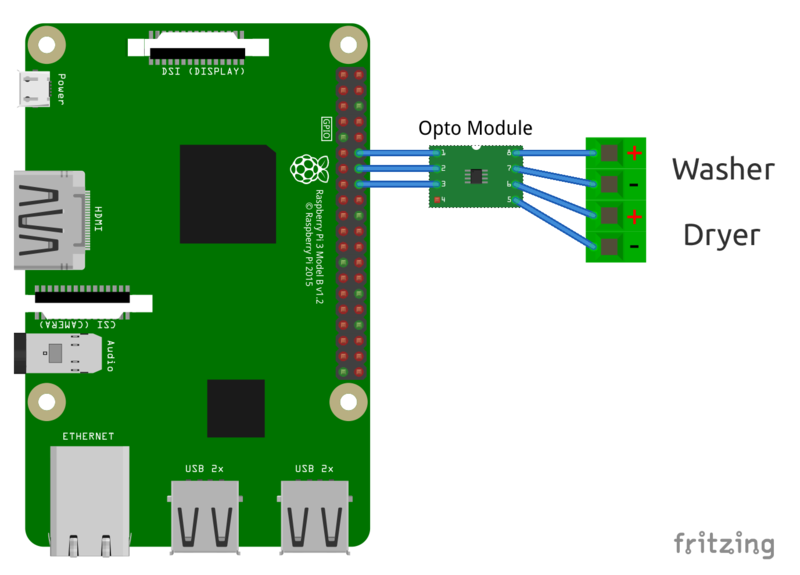

Using double sided development board pcb is easy to accommodate the size of this optocoupler module so it's small enough to sit nicely between raspberry pi and the lcd.

Direct Power 5V to motherboard

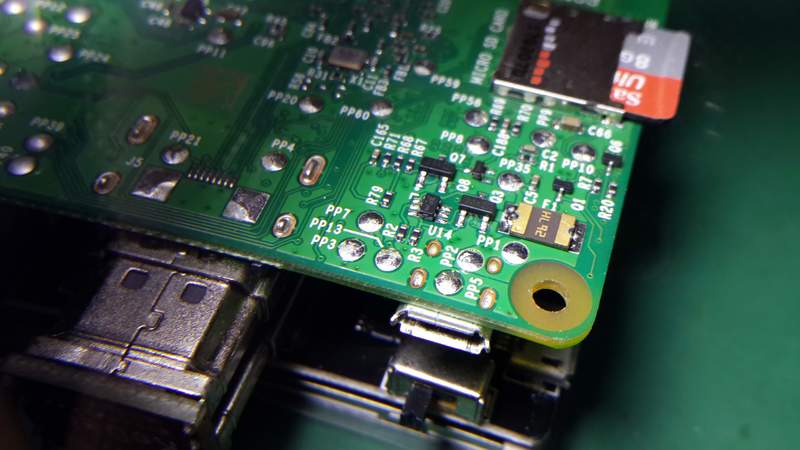

rpi3b mainboard test point

PP1 : +5v
PP3 : Gnd

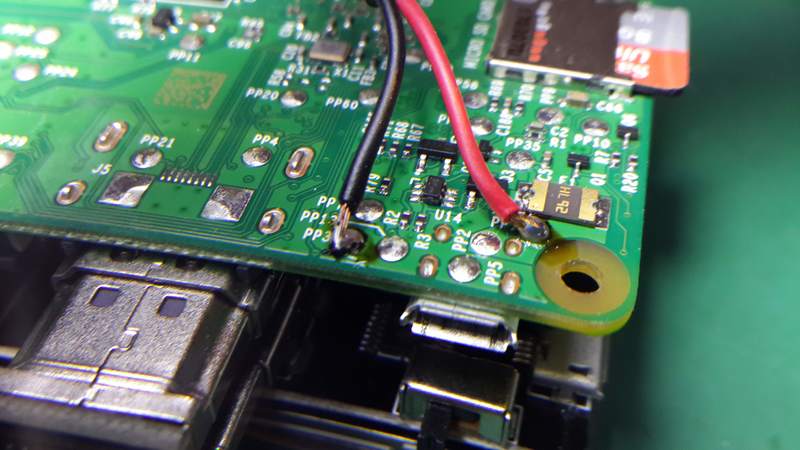

rpi3b mainboard direct 5v without microusb
